LED5702 LED Light bar

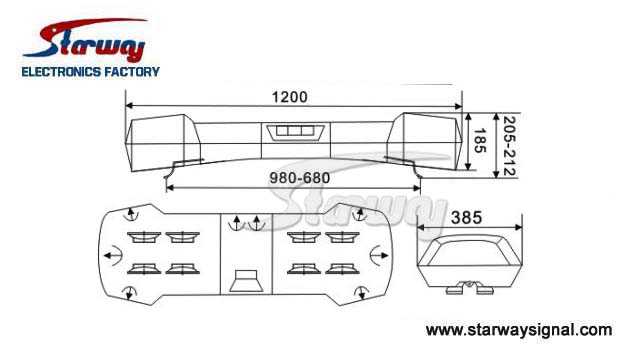

Dimensions：Size: 1200mm L x 385mm W x 210mm H
- Specification
- Dimensions
- Video
- Download Instruction Manual
- Request Quote
Inside the shell, the bulb is made of high brightness LED lights. ten flashers, two alley lights and sixteen LED lights are arranged uniformly.
High efficiency, good in chrominance of light, strong penetrability, with the functions of draining, waterproof and dustproof, suitable for various weathers as rainstorm, bitter cold, severe hot etc, durable and hard-wearing, widely used for motor vehicles and danger signals. The exterior and the light source have multi functions. We can arrange production as the different demands of users.
2. The main capability parameter
● The rated work voltage: DC 12V/ 24V
● Total current: ≤8A
● 8 LED modules up-layer
● 8 small LED module down-layer or 8 halogen flashing
● 2x LED alley light or halogen alley light and Alternating flash pattern
● Speaker compartment and 12 foot cord
● 3 button control box, Includes hook-on mount
● Size: 1200mm L x 385mm W x 210mm H
● Color: Red/Blue, All Red, All Blue, All Amber ,All Clear and any combination
3. Installation of the warning light bar
● Put light bar on the vehicle’s roof, base on the vehicle’s size, adjusting the frame to fit it, And Then let the catches button the rainwater line on both side of the vehicle and screwing the nut by wrench.

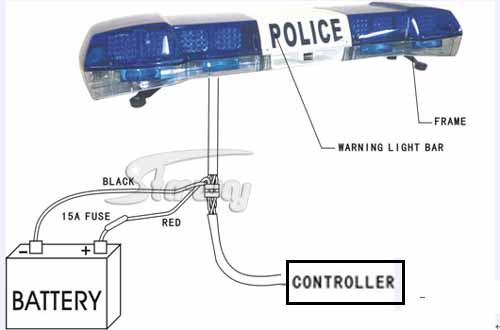

● After installed, firstly, the red and black wires should be connected with auto’s storage battery (red to +, black to -), secondly firm plug the controller to the light bar.
c) After checking, then turn on the switch to work the Warning light bar.
|
Packing Size
|
1275mmx425mmx260mm
|
|
Qty/CTN
|
1PCS
|
