LTF-8C920 LED Light bar
Dimensions：Dimensions: 1080*220*130mm
- Specification
- Dimensions
- Video
- Download Instruction Manual
- Request Quote
1. Summary
This Emergnecy LED Vehicle Lightbar adopts double-layer aluminum alloy boards structure, which has distinct outline stronger percussion-resistant capability, and is not easy to lose color and get aged. Moreover, the light bar has good sealing and waterproof. A lot of LED lights are distributed shapely and use high brightness LED lights let it give out strong flash light from each direction. And it has advantage with high brightness and low power waste. It can be installed on all kinds of special vehicles. Even in extremely complicated, circumstances, it can transmit emergency signal correctly.
2. Specifiation
3.Packing Information
|
Model |
LTF-8C920 Emergency LED Light bar |
|
Work voltage
|
DC12V/DC24V
|
|
The max. lightened bound
|
> 800LX
|
|
Environment
|
-40 ℃~ +50 ℃
|
|
Waste currant
|
4A
|
|
One LED light tube specification
|
φ5, high brightness
|
|
Light type
|
LEDS
|
|
Dome Color |
Blue/Red, Blue/Blue, Red/Red, Amber/Amber, Clear/Clear |
|
Lens material |
PC |
|
Dimensions |
1080*220*130mm |
|
Base material |
Aluminum alloy |
|
Net Weight |
9KGS |
3.Packing Information
| Packing Size | 1130mm*275mm*165mm |
| Qty/CTN | 1PCS |
4. Installation of the warning light bar
a) Put light bar on the vehicle's roof, base on the vehicle's size, adjust the frame to fit it, And let the catches button the rainwater line on both side of the vehicle and screwing the nut by wrench.
b) After installed, firstly, the red and black wires should be connected with auto's storage battery (red to +, black to -). See the wiring diagram to connect the wires.
c) After checking, then supply the power to work the light bar.

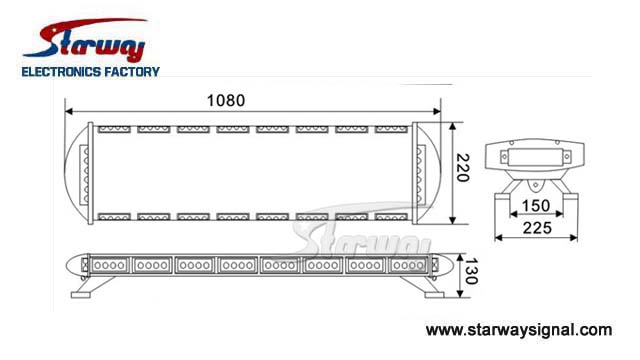

Dimensions: 1080*220*130mm
