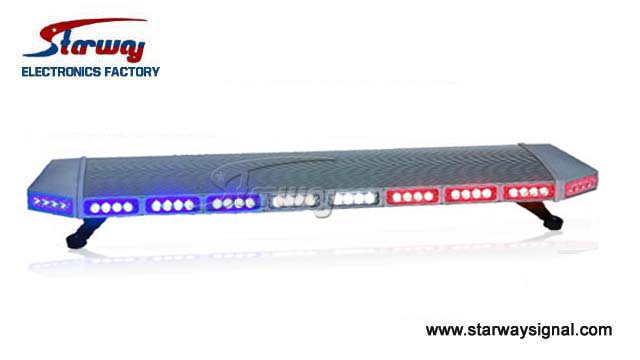

LTF-A900AB-120 LED Light bar

Dimensions: Dimensions: 1200x300x130(45)mm

  • Specification
  • Dimensions
  • Video
  • Download Instruction Manual
  • Request Quote
1. Summary
    This Warning Full LED Light bar (LTF-A900AB-120 LED Light bar)adopts double-layer aluminum alloy boards structure and sector design, which has distinct outline stronger percussion-resistant capability, and is not easy to lose color and get aged. Moreover, the caution light has good sealing and waterproof. A lot of LED lights are distributed as a ring and use high power LED lights let it give out strong flash from each direction. And it has advantage with high brightness and low power waste. Even in extremely complicated, circumstances, it can transmit emergency signal correctly. The controller of the light bar can choose several modes to flash the light.

2. Specifiation
Voltage DC12V/DC24V
The max. lightened bound  > 800LX
Environment -40 ℃~ +50 ℃
Currant 8.4A
Life Span 100,000
Light type: Generation lll / Generation ll
Dome Imported high-strength PC material with excellent lustrous and high penetrating-for ability.
Base Aluminum alloy material with high strength.
Size 1200x300x130(45)mm
Net Weight: 16.5KGS

3.Packing Information:
Packing Size 1235x350x180mm
Qty/CTN 1PCS

4. Installation of the warning lightbar
a) Put the light bar on the roof of the vehicle, base on the vehicle's size, adjusting the frame to fit it, And Then let the catches button the rainwater line on both side of the vehicle and screwing the nut by wrench. (
b) After installed, firstly, according the color, plug the six wires one by one to the controller, ensure every wire not to meet each other, then connect the two main red and black electrical wires to the battery (red to +, black to -)

NOTICE: the controller connection should must be made before it connects to battery. And must use insulating tape tie up every of six wires of controller, ensure they can not to short. Otherwise the controller will be damaged

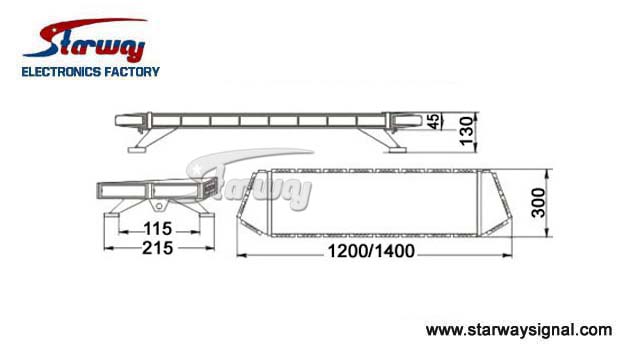

Dimensions: 1200x300x130(45)mm
