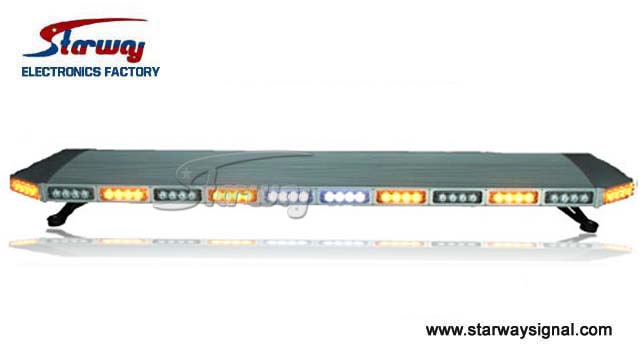

LTF-A900AB-140 LED Light bar

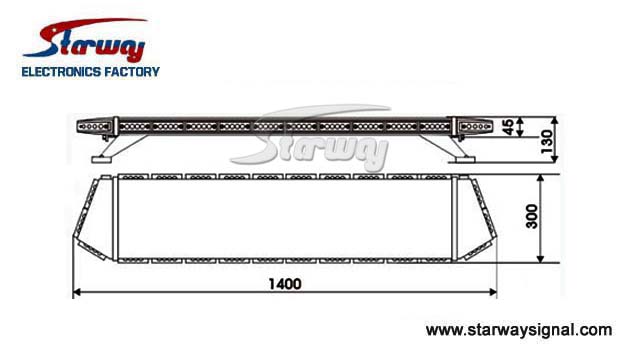

Dimensions：Dimensions: 1400x300x130(45)mm
- Specification
- Dimensions
- Video
- Download Instruction Manual
- Request Quote
2. Specifiation
|
Model |
LTF-A900AB-140 Full LED Light bar |
| Voltage | DC12V/DC24V |
| Length | 140cm |
| The max. lightened bound | > 800LX |
| Environment | -40 ℃~ +50 ℃ |
| Currant | 10.2A(140cm red blue) |
| Life Span | 100,000 |
| Light type: | Generation lll / Generation ll |
| Dome | Imported high-strength PC material with excellent lustrous and high penetrating-for ability. |
| Base | Aluminum alloy material with high strength. |
| Size | 1400x300x130(45)mm |
| Net Weight: | 19KGS |
3. Packing Information
| Packing Size | 1450x350x180mm |
| Qty/CTN | 1PCS |
4. Installation of the warning LED Light bar
a) Put the LED light bar on the roof of the vehicle, base on the vehicle's size, adjusting the frame to fit it, And Then let the catches button the rainwater line on both side of the vehicle and screwing the nut by wrench. (Re. Figure 1 below)
b) After installed, firstly, according the color, plug the six wires one by one to the controller, ensure every wire not to meet each other, then connect the two main red and black electrical wires to the battery (red to +, black to -) (Re. Figure 2 below).
NOTICE: the controller connection should must be made before it connects to battery. And must use insulating tape tie up every of six wires of controller, ensure they can not to short. Otherwise the controller will be damaged.
