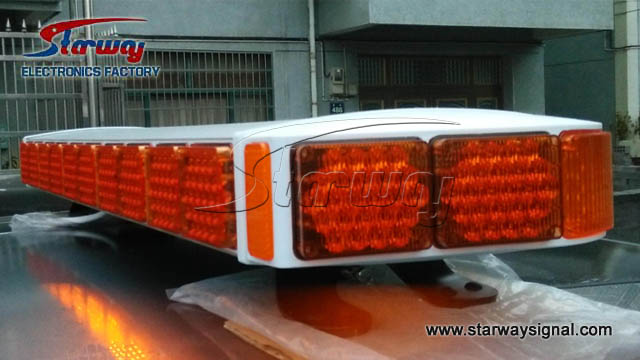

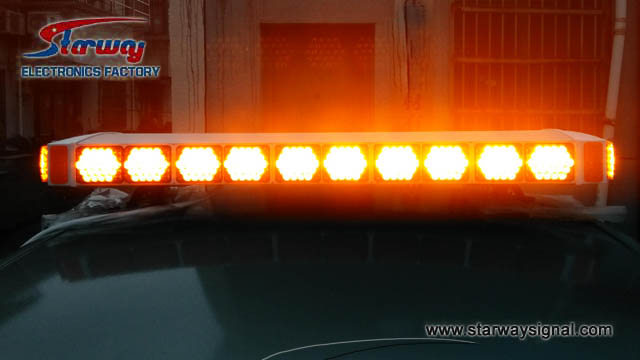

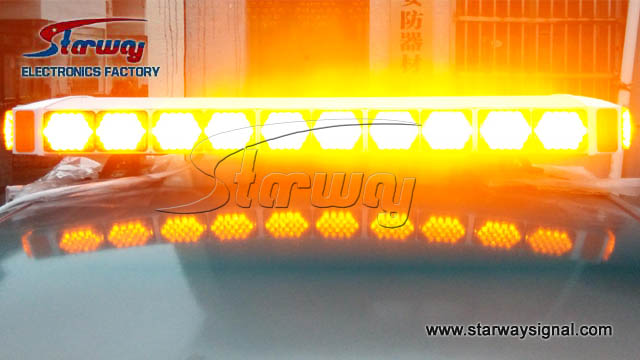

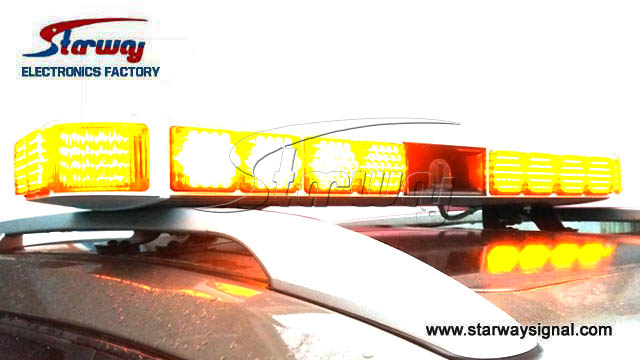

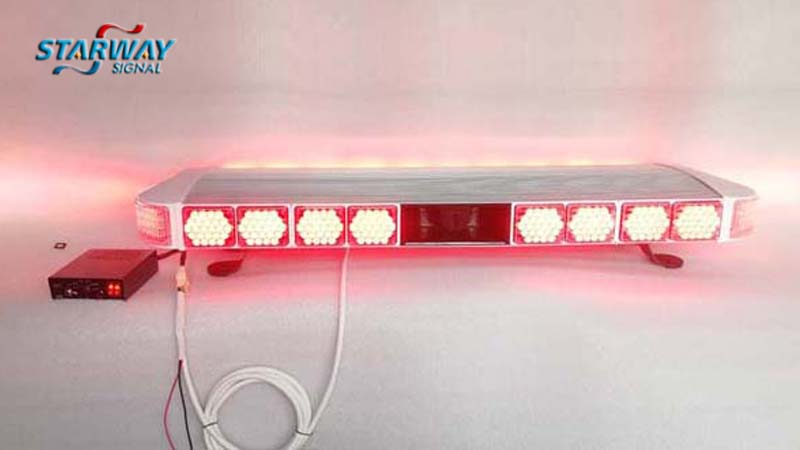

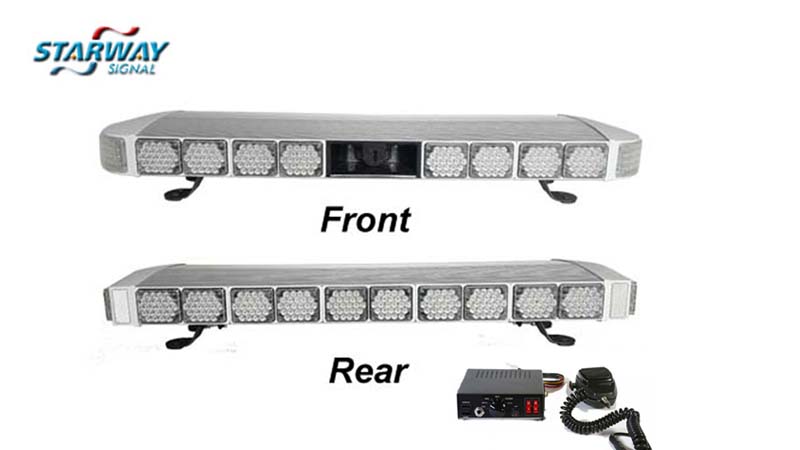

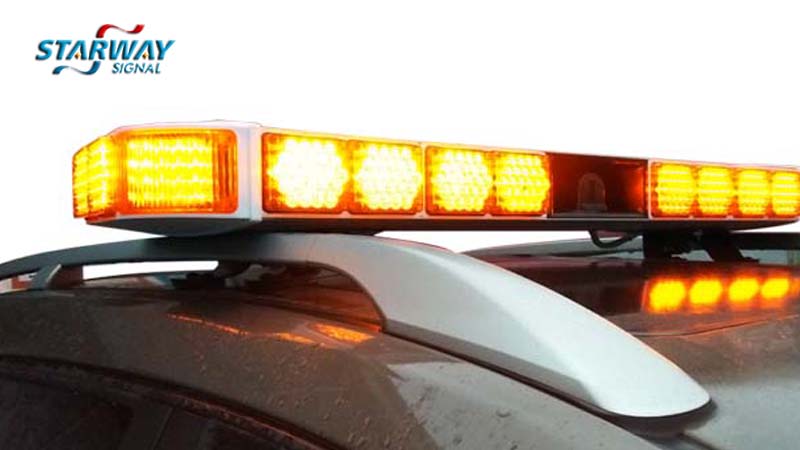

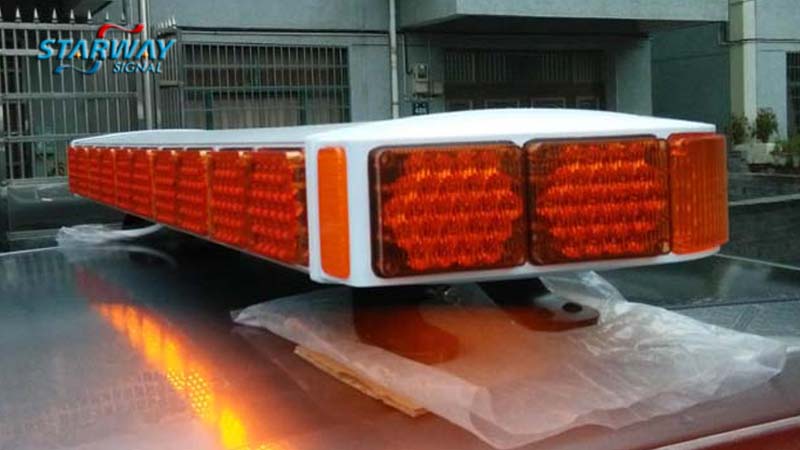

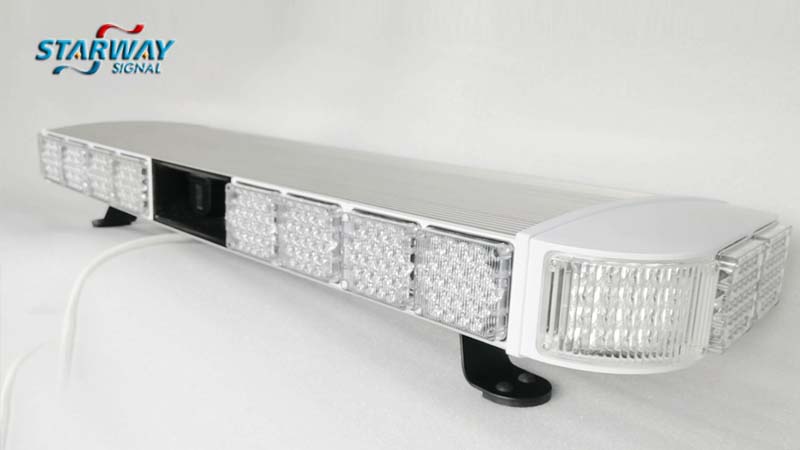

LTF5501 LED Light bar

Dimensions: Dimensions: 1160x314x165mm

  • Specification
  • Dimensions
  • Video
  • Download Instruction Manual
  • Request Quote

1. Summary

   This Police LED Warning lightbar adopts double-layer aluminum alloy boards structure and sector design, which has distinct outline stronger percussion-resistant capability, and is not easy to lose color and get aged. Moreover, the caution light has good sealing and waterproof. Several LED lights are distributed as a ring and give out strong flash from each direction. And it has advantage with high brightness and low power waste. Even in extremely complicated circumstances this Police LED Emergency lightbar can transmit emergency signal correctly.


2. Specifiation

Model
LTF5501 Warning LED Light bar
Work voltage

DC 10.8~13.8 V.

Length

1160mm

The max. lightened bound

 > 800LX

Environment

-40 ℃~ +50 ℃

Currant

<10A

Life Span

100,000

Size

1160x314x165mm


3.Packing Information

Packing Size

1270x350x225mm

N.W./G.W.

18.5/20Kgs

Qty/CTN

1PCS


4. Installation of the warning light bar

●  Put light bar on the back of the vehicle, base on the vehicle's size, adjusting the frame to fit it, And Then making the catch button the rainwater line on both side of the bodywork and screwing the nut by wrench

●  After installed, the two main electrical wires connecting to the battery (red to +, black to -), and firm plug the siren host to the light bar.


Dimensions: 1160x314x165mm
