LED2-A58AB Mini Light bar
Dimensions：Dimensions : 580x300x135mm
- Specification
- Dimensions
- Video
- Download Instruction Manual
- Request Quote

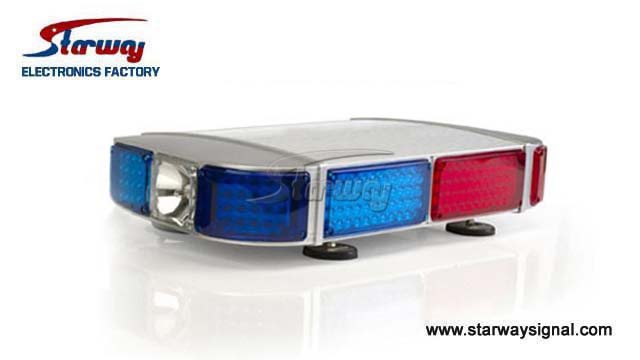

Mini Light bar for Police lightbars and Emergecy Vehicle (LED2-A58AB)
1.Features
● 12 foot cord with cigarette adapter
● Steadfast magnetic mount
● Includes 3 button control box
● Color: Red,Blue,Amber,White and Green LED module
● Steady alley lights, each side with separate control
3. Specifiation
|
Model |
LED2-A58AB Warnign Mini Light bar |
|
Voltage
|
DC12V/DC24V
|
|
Environment
|
-40 ℃~ +50 ℃
|
|
Waste currant:
|
≤2A
|
|
Light Sources
|
LEDS
|
| Top of the light bar | Aluminum alloy |
| Material of lens | PC |
| Color |
Red/Blue/Amber/Clear/Green
|
| N.W/G.W | 7.5KGS/9KGS |
4.Packing Information
|
Packing Size
|
680mmx350mmx225mm
|
|
Qty/CTN
|
1PCS
|
5. Installation of the warning Mini light bar
a. adsorb the light bar on the back bodywork. After installed, the two main electrical wires inset the capacitor (red to +, black to -), and the cores plug inset the back of the controller. Then working.
a. adsorb the light bar on the back bodywork. After installed, the two main electrical wires inset the capacitor (red to +, black to -), and the cores plug inset the back of the controller. Then working.
b. .After checking, insetting the electrical switch, turn on the switch that on the controller, then beginning to work.
Dimensions : 580x300x135mm
