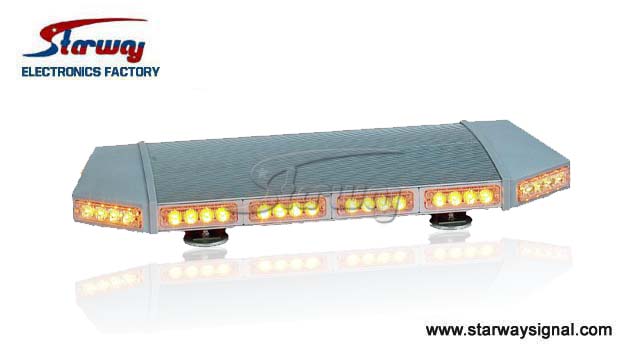

LTF-A900AB-70 LED Mini Light bar

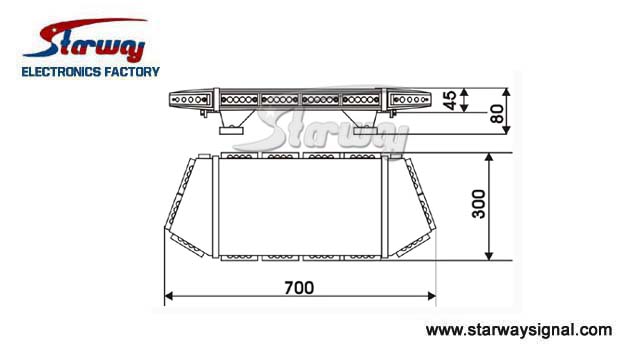

Dimensions：700x300x130(45)mm
- Specification
- Dimensions
- Video
- Download Instruction Manual
- Request Quote
1.Specifiation
|
Model |
LTF-A900AB-70 LED Mini Light bar |
| Work voltage | DC12V/DC24V |
| Length | 70cm |
| The max. lightened bound | > 800LX |
| Environment | -40 ℃~ +50 ℃ |
| Currant | 5.1A |
| Life Span | 100,000 |
| Light type: | Generation lll / Generation ll |
| Dome | Imported high-strength PC material with excellent lustrous and high penetrating-for ability. |
| Base | Aluminum alloy material with high strength. |
| Size | 700x300x130(45)mm |
| Net Weight: | 8KGS |
2.Packing Information
| Packing Size | 745x350x180mm |
| Qty/CTN | 1PCS |
3.Installation of the warning light bar
● Adsorb the light bar on the roof of the vehicle. Then according the color, plug the six wires one by one to the controller, and make strict insulation step to it.
● After checking, then insetting the cigar cord to the cigar jack of the vehicle. turn on the switch to working the light bar.
NOTICE: the controller connection should must be made before it connects to battery. And must use insulating tape tie up every of six wires of controller, ensure they can not to short. Otherwise the controller will be damaged.
NOTICE: the controller connection should must be made before it connects to battery. And must use insulating tape tie up every of six wires of controller, ensure they can not to short. Otherwise the controller will be damaged.
700x300x130(45)mm
