1.Features
● Work voltage:DC12V / 24V
●  Life  Span: 100,000
●  G-3 LEDs with 4 bulbs
●  18 flash patters to pick up and can flash two lightheads together for  synchronization
●  Waterproof and shockproof
●  Perfect  for interior and outer applications .

2. Specifiation

Work voltage	DC12V / DC24V
Type	Traffic Signal
Light Sources	LEDS(G-III)
Type	Traffic Signal
Electric  Current	<=1.2A
Bulb number	4
Material of lens	PC
Flash patterns	15
Color	Red/Blue/Amber/Clear/Green

3. Mounting

● Position the unit in its proposed mounting location. Draw a pencil line onto the mounting surface along the top and bottom of the extrusion and a "centerline" centered between the two.

● Two 1/4" holes are required to mount this unit. These holes may be located anywhere along the holes as far apart as possible. Mark the hole location onto the mounting surface.

● Using a 1/4" drill bit, drill a hole in each of the areas scribed in the previous step.

● Slide the 2 carriage bolts (installed in the rear of the bar) insert them into the mounting holes.

● Secure the unit by threading the flat washer and elastic stop nut onto each bolt and tightening them firmly.

4.Wiring

See illustration diagram for wiring information

WARNING! All customer-supplied wires that connect to the positive terminal of the battery must be sized to supply at least 125% of the maximum operating current and at the battery to carry the load. DO NOT USE CIRCUIT BREAKER SWITH THIS PRODUCT!

5.Operation

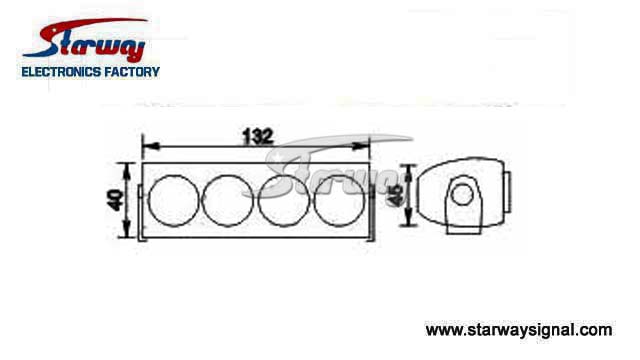

132*40*45mm

Download Instruction Manual
