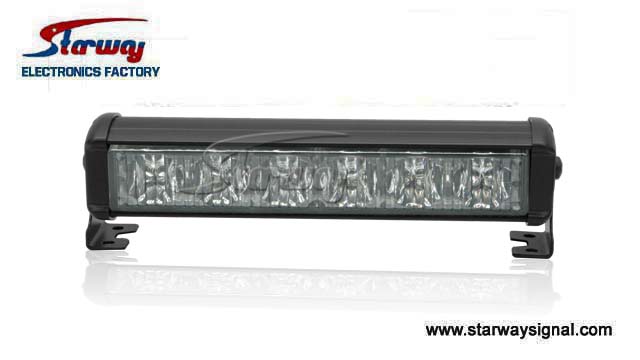

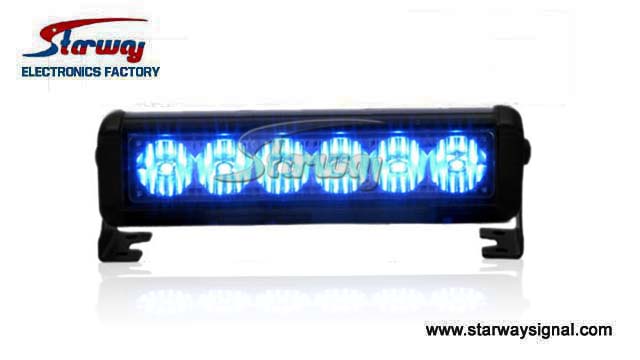

LED362 super LED lighthead
Dimensions：180*40*45mm
- Specification
- Dimensions
- Video
- Download Instruction Manual
- Request Quote
1.Features
● Work voltage:DC12V/DC24V
● Life Span: 100,000
● Waterproof and shockproof
● G-3 LEDs with 6 bulbs
● 18 flash patters to pick up and can flash two lightheads together for synchronization
● Perfect for interior and outer applications .
2. Specifiation
3.Mounting
● Position the unit in its proposed mounting location. Draw a pencil line onto the mounting surface along the top and bottom of the extrusion and a "centerline" centered between the two.
● Two 1/4" holes are required to mount this unit. These holes may be located anywhere along the holes as far apart as possible. Mark the hole location onto the mounting surface.
● Using a 1/4" drill bit, drill a hole in each of the areas scribed in the previous step.
● Slide the 2 carriage bolts (installed in the rear of the bar) insert them into the mounting holes.
● Secure the unit by threading the flat washer and elastic stop nut onto each bolt and tightening them firmly.
4.Wiring
See illustration diagram for wiring information
WARNING! All customer-supplied wires that connect to the positive terminal of the battery must be sized to supply at least 125% of the maximum operating current and at the battery to carry the load. DO NOT USE CIRCUIT BREAKER SWITH THIS PRODUCT!
● Work voltage:DC12V/DC24V
● Life Span: 100,000
● Waterproof and shockproof
● G-3 LEDs with 6 bulbs
● 18 flash patters to pick up and can flash two lightheads together for synchronization
● Perfect for interior and outer applications .
2. Specifiation
|
Model |
LED362 Warning super LED lighthead |
|
Work voltage |
DC12V / DC24V |
|
Type |
Traffic Signal |
|
Light Sources |
LEDS(G-III) |
|
Type |
Traffic Signal |
|
Electric Current |
<=1.2A |
|
Bulb number |
6 |
|
Material of lens |
PC |
|
Flash patterns |
18 |
|
Color |
Red/Blue/Amber/Clear/Green |
● Position the unit in its proposed mounting location. Draw a pencil line onto the mounting surface along the top and bottom of the extrusion and a "centerline" centered between the two.
● Two 1/4" holes are required to mount this unit. These holes may be located anywhere along the holes as far apart as possible. Mark the hole location onto the mounting surface.
● Using a 1/4" drill bit, drill a hole in each of the areas scribed in the previous step.
● Slide the 2 carriage bolts (installed in the rear of the bar) insert them into the mounting holes.
● Secure the unit by threading the flat washer and elastic stop nut onto each bolt and tightening them firmly.
4.Wiring
See illustration diagram for wiring information
WARNING! All customer-supplied wires that connect to the positive terminal of the battery must be sized to supply at least 125% of the maximum operating current and at the battery to carry the load. DO NOT USE CIRCUIT BREAKER SWITH THIS PRODUCT!
5.Operation
180*40*45mm
