1. Features
●  Powered by 12V
●  11 feet of cable provided
●  16 available flash patterns
●  Life Span of 100,000 hours
●  Anti-glare coating on outer lens
●  Runs on Generation 3 LED lighting
●  8 modules with 8 linear LEDs in each
●  Includes control box with On/off switch
●  Includes L-shaped brackets for mounting
●  Flash pattern & Directional changer included

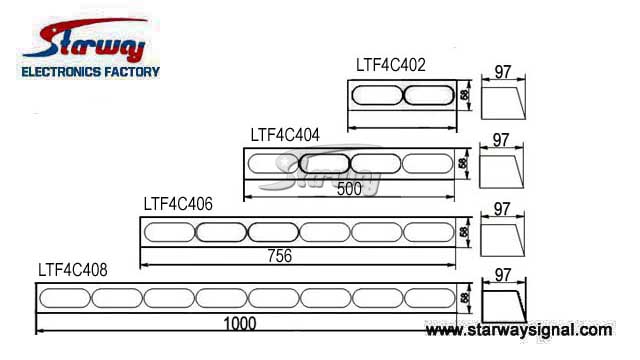

●  Dimensions: 100cm L x 10cm W x5cm H (LTF4C408 LED Directional Lightbar)
                              75.6cm L x 10cm W x5cm H (LTF4C406 LED Directional Lightbar)
                              50cm L x 10cm W x5cm H (LTF4C404 LED Directional Lightbar)
                              25cm L x 10cm W x5cm H (LTF4C402 LED Directional Lightbar)
2. Specifiation

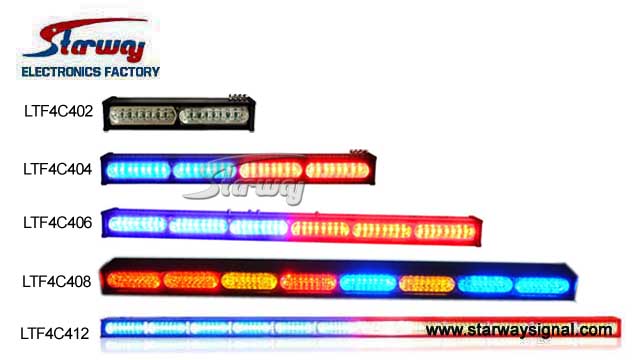

Model	LTF4C402, LTF4C404, LTF4C406, LTF4C408, LTF4C412  LED Directional Light bars for Police lightbars and Emergecy Vehicle
Work voltage	DC12V/DC24V
Type	Traffic Signal
Environment	-40 ℃~ +50 ℃
Power of one light head	5.4W (for color: blue, clear, green);3W (for color: red, amber)
LED power	0.5W
LED headlight quantity	4C408: 8pcs, 4C406: 6pcs,4C404:4pcs; 4C402: 2pcs
Light Sources	LEDS
Warning light bar color	Red/Blue/Amber/Clear/Green

3.Mountiong of Emergency led Directional lightbars
Mark the areas where the mounting holes are to be drilled, then drill these holes, and use bolt and nut mount the light on the mounting surface of the vehicle. Mount the controller on the place where easy to control, then plug the power supply wires with controller.
4.Wiring of Emergency led Directional lightbars
Connect the main wires red and black to the strong battery (red to +, black to - ). Then turn on switch to work the light.

100cm L x 10cm W x5cmH; 75.6cm L x 10cm W x5cmH; 50cm L x 10cm W x5cmH ; 25cm L x 10cm W x5cm H

Download Instruction Manual
