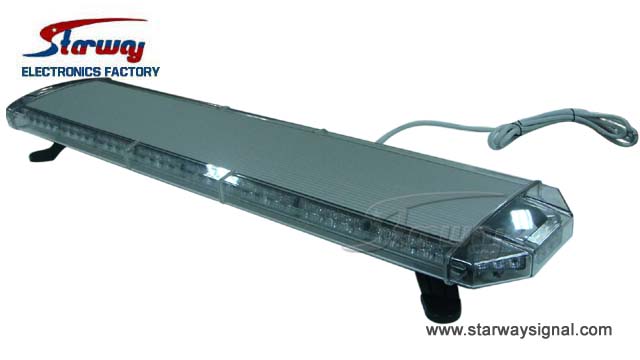

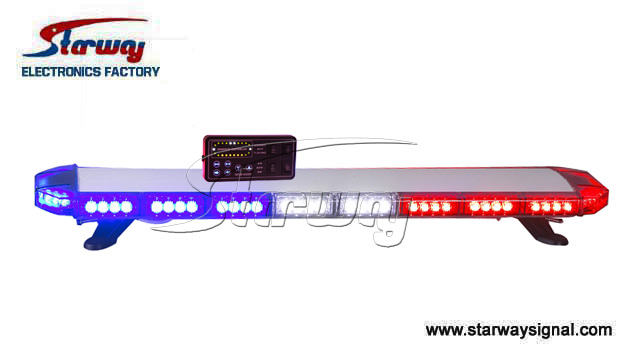

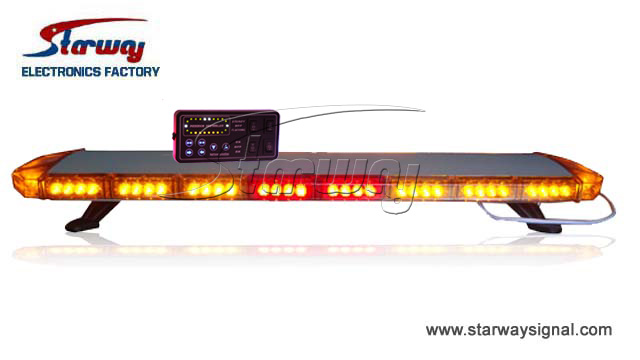

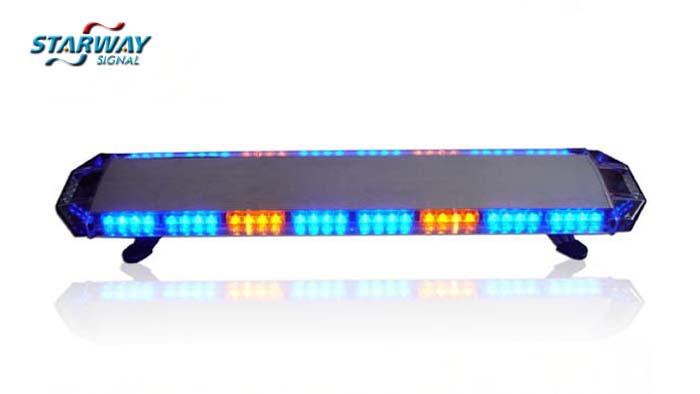

LED3520 Warning LED Light bar

Dimensions:Packing Size:1220x310x140mm

  • Specification
  • Dimensions
  • Video
  • Download Instruction Manual
  • Request Quote

 Summary
This product LED3520 LED light bar is made of a lot of high brightness LED lights. A lot of LED lights are distributed shapely and use high power LED lights let it give out strong flash light from each direction. And it has advantage with high brightness and low power waste. It has 25 kinds flash patterns and six direct lights. The light bar has good-looking shape and stronger against impulse capability, and it not easy to lose color or get aged. It can be installed on all kinds of special vehicles. Even in extremely complicated, circumstances, it can transmit emergency signal correctly.

1.The main capability parameter
1.1. The rated work voltage: □DC12V (range DC10.8V~13.8 V).
                       □DC24V(range DC20.8V~26.8 V).
1.2. The length of the light bar: 1.2m
1.3. The max. lightened bound: > 800LX.
1.4. The environment temperature: -40 ℃~ +50 ℃.
1.5. Waste currant: 10A(max)
1.6. Flashing lights power: 81.8W
1.7. Left alley light power:2.4W
1.8. Right alley light power: 2.4W
1.9. Front lights power: 6.3W
1.10. Direct lights power: 50.4W
2.Products description
2.1.17 inches-67 inches length
2.2. Voltage: 12V or 24V
2.3.12ft cable from light bar to controller box
2.4.Colored LED Modules with Clear Lenses(DOME)for choose RED/WHITE/AMBER/GREEN/BLUE and middle aluminum housing
2.5.New 20% brighter LED modules with 4 LEDs in the front and back also 3 LEDs in side and alley pure 1 Watts LED
2.6..Ultra slim profile with clear lens for a stealth look
2.7. Arrow stick advisor on the back
2.8. Independently controlled alley lights, Taken down lights and traffic advisor .
2.9. Fully encapsulated, Fully weatherproof and easy installation

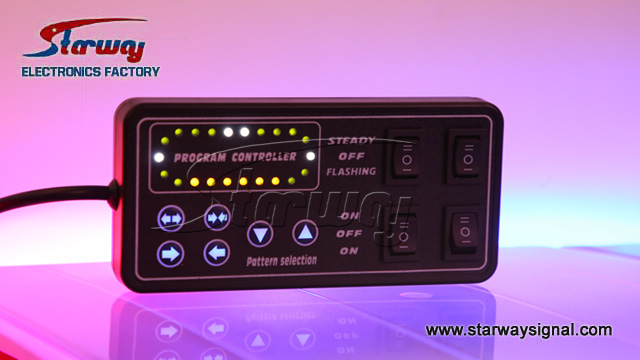

2.10.Includes universal Gutter Brackets and LED flash pattern indicator of switchbox

Packing Size:1220x310x140mm
