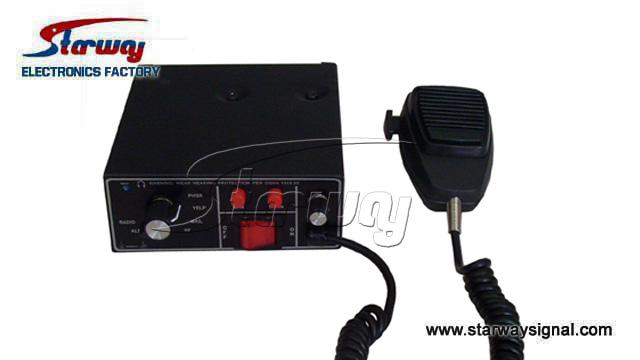

SW770 Police Alarm Siren
Dimensions：6" Wide, 6-1/2" Deep, 2-1/2" High
- Specification
- Dimensions
- Video
- Download Instruction Manual
- Request Quote
Specifiation
-- Input Voltage: 10 - 16 VDC (negative ground)
--- Input Current : 8.0 Amps @ 13.6 VDC (single 100W speaker)
16 Amps @ 13.6 VDC (dual 100W speakers)
--- Standby Current :Less than 150 mA
--- Audio Frequency :200Hz - 10 kHz ± 3db
--- Audio Output 40 watts @13.6 VDC (single 100W speaker)
--- Output Power 105 WATTS RMS MAX. (15.0 VDC - single 100W speaker)
--- 180 WATTS RMS MAX. (15.0 VDC - dual 100W speaker)
--- Siren Frequency 675Hz - 1633Hz
--- High Voltage Protection 16 - 18 VDC will cause siren output to cease, resumes at normal voltage
--- Short Circuit Current 50 AMPS (supply circuit must be capable of supplying this)
--- Operating Temperature -15°F to + 140°F
--- Controls 7 - position rotary switch (Radio, Alert, Man, HF, Wail, Yelp, Phsr)
--- Momentary push - button Horn switch
--- Momentary Push - button Manual/Toggle switch
--- Auxiliary input (jumper programmable)for positive or negative horn
--- Remote Manual or Hands Free operation
--- Park Kill input (jumper programmable)for positive or negative activation
--- Phaser (and Two - Tone)disable (jumper programmable)
--- Two - Tone activation (swaps modes with Phaser)(jumper programmable)
--- Horn Ring Transfer input/output
--- Size 6" Wide, 6-1/2" Deep, 2-1/2" High
-- Input Voltage: 10 - 16 VDC (negative ground)
--- Input Current : 8.0 Amps @ 13.6 VDC (single 100W speaker)
16 Amps @ 13.6 VDC (dual 100W speakers)
--- Standby Current :Less than 150 mA
--- Audio Frequency :200Hz - 10 kHz ± 3db
--- Audio Output 40 watts @13.6 VDC (single 100W speaker)
--- Output Power 105 WATTS RMS MAX. (15.0 VDC - single 100W speaker)
--- 180 WATTS RMS MAX. (15.0 VDC - dual 100W speaker)
--- Siren Frequency 675Hz - 1633Hz
--- High Voltage Protection 16 - 18 VDC will cause siren output to cease, resumes at normal voltage
--- Short Circuit Current 50 AMPS (supply circuit must be capable of supplying this)
--- Operating Temperature -15°F to + 140°F
--- Controls 7 - position rotary switch (Radio, Alert, Man, HF, Wail, Yelp, Phsr)
--- Momentary push - button Horn switch
--- Momentary Push - button Manual/Toggle switch
--- Auxiliary input (jumper programmable)for positive or negative horn
--- Remote Manual or Hands Free operation
--- Park Kill input (jumper programmable)for positive or negative activation
--- Phaser (and Two - Tone)disable (jumper programmable)
--- Two - Tone activation (swaps modes with Phaser)(jumper programmable)
--- Horn Ring Transfer input/output
--- Size 6" Wide, 6-1/2" Deep, 2-1/2" High
6" Wide, 6-1/2" Deep, 2-1/2" High
