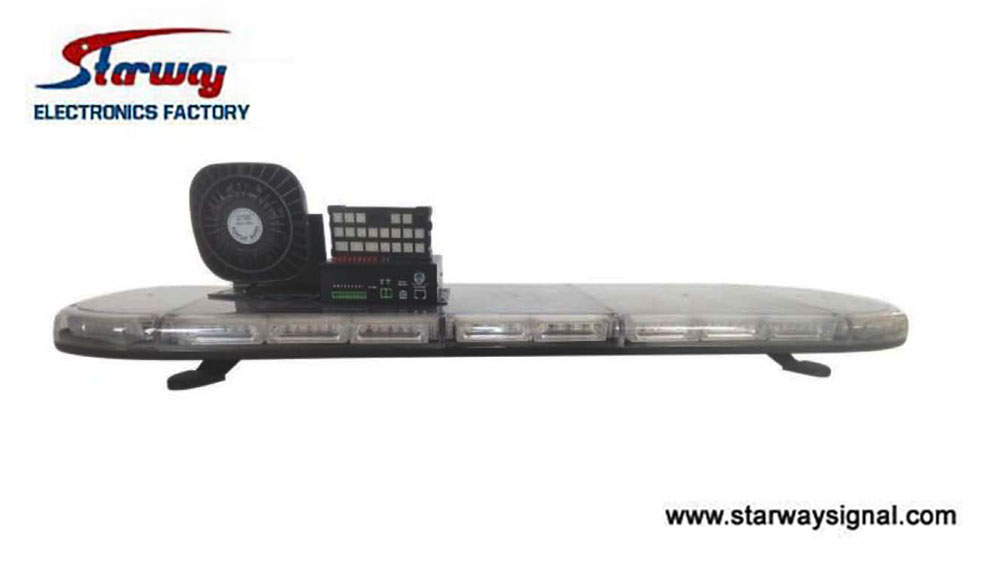

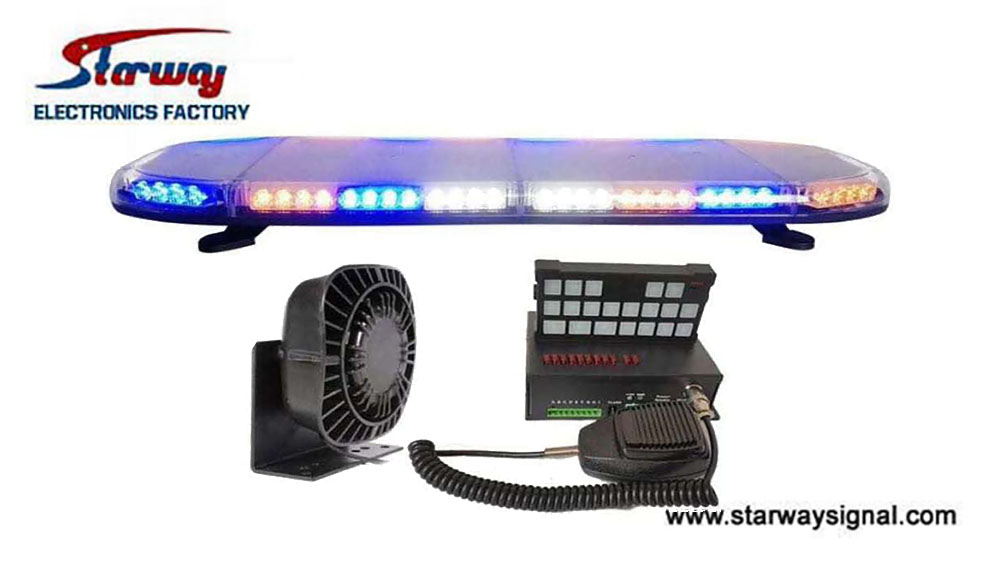

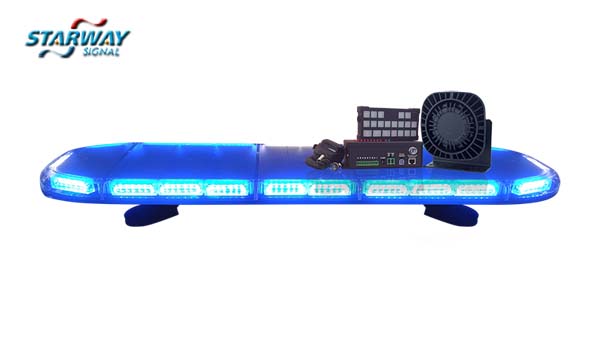

LED39127 Super Thin LED Lightbar
Dimensions：Light bar dimensions: 48" L x 12" W x 1.8" H (Length 1219.2mm, Width 304.8mm, and Height 45.72mm)
- Specification
- Dimensions
- Video
- Download Instruction Manual
- Request Quote
SPECIFICATIONS:
• Super bright LINEAR design with 124 powerful Generation III LEDs, the version is the brightest LED light bar
on the market
• Powered by 12V
• Extruded aluminum base
• Interchangeable Polycarbonate Lenses
• Hermetic casing, resistant to weather and different types of climate
• Different shell color options such as transparent, red, blue and amber
• Ultra slim profile with transparent Polycarbonate lens for a discreet appearance, resistant to dust and
water.
• Total 124 LINEAR LEDs of 3 watts each, generation III
• *108 color leds when choosing between red, blue, amber, green
• *16 white colors
•Intervention lights (TAKE DOWN): 2 modules of four White diodes ( LED) of 3 watts white each.
•Alley lights (ALLEY LIGHT): 2 modules of four white diodes (LED), each of 3 watts.
• Rear directional flashing: right, left, center out.
• 25 flash patterns available (bottom attached)
• Three levels of light intensity emitted by each LED in its modules: Low, Medium and High
• Non-volatile memory remembers last flash pattern
• • Includes 13 feet of switch box cord, 8 feet of power cord, and 8 feet of auxiliary cord.
• 3 user-programmable memory buttons
• Includes brackets for ceiling mounting.
• Light bar dimensions: 48" L x 12" W x 1.8" H (Length 1219.2mm, Width 304.8mm, and Height 45.72mm)
SPECIFICATIONS:

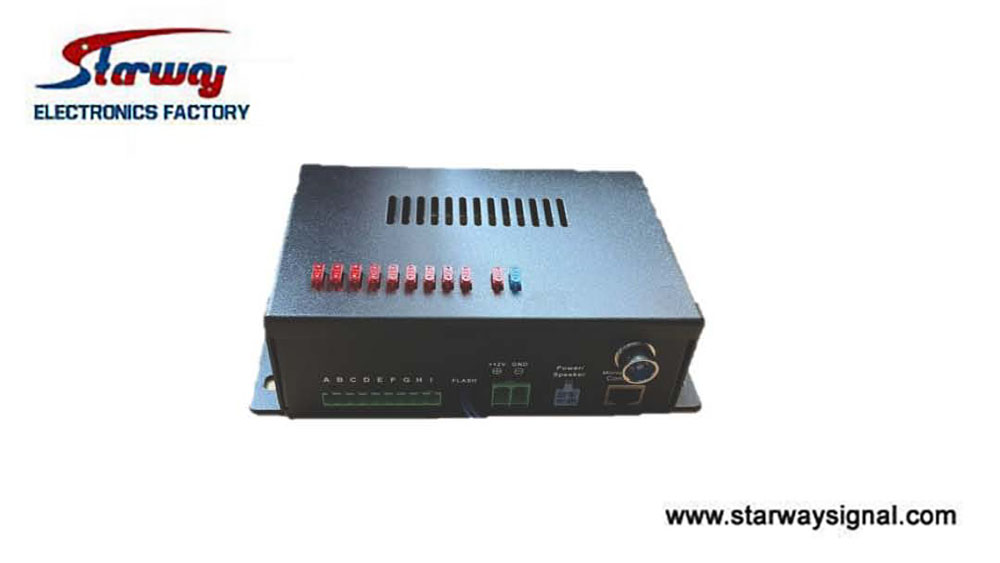

The CJB8500 siren and control module applies to all our LED light bars which can perform various functions
convenient for users:
• Includes multifunction programming control switch box (siren), amplifier (speaker) and wired microphone
with metal clip
• Voltage: 12VDC
•Power: 100W output
•Available with 5 sounds: Wail, Yelp, Phsr (similar to Priority), Horn, Mech.
• Dimensions of the control module: 6”L
• Dimensions of the electronic siren: 7.5”L
• Includes protection devices for overloads and short circuits of current and voltage.
• Includes function to turn the siren on and off from the steering wheel

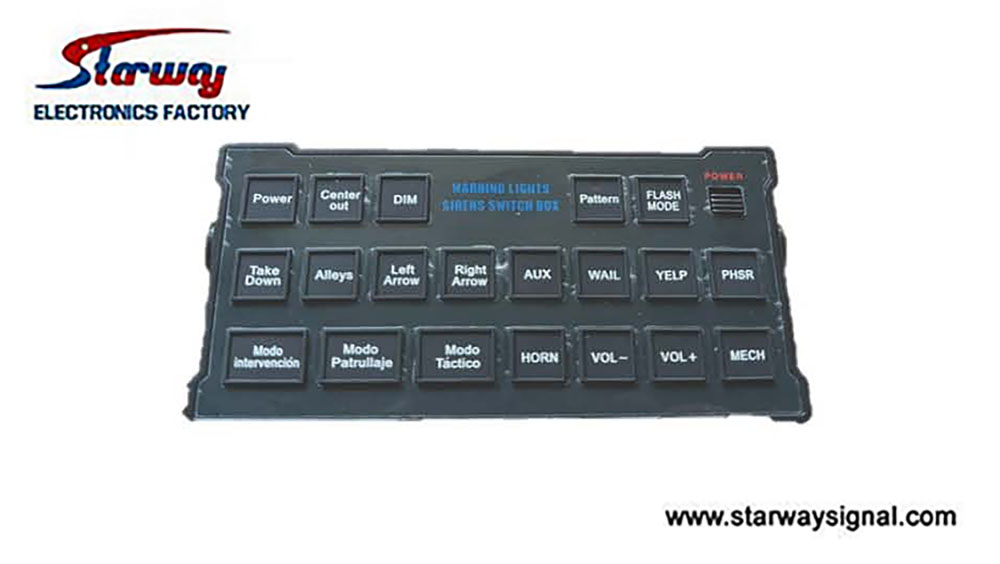

CONTROL MODULE FUNCTIONS:
1. Power Button: Turns the warning functions of the entire light bar on and off.
2. CENTER OUT button: Activates the directional function of the 6 center LED module on both sides of the
rear.
3. DIM Button: Dims the entire LED light bar by 50% when you press the button.
4. PATTERN Button: Moves to the next flashing pattern with each press and non-volatile memory recalls the
last selected pattern.
5. FLASH MODE Button: Make the 2 center front LED modules or both rails constantly on and flashing.
6. TAKE DOWN Button: Turn the 2 front center white LED modules on/off.
7. ALLEYS Button: Turns on/off the white LED module on both sides.
8. LEFT ARROW Button: Controls the lights flashing to the left.
9. RIGHT ARROW Button: Controls the course lights to flash to the right.
10. AUX Button: Connect with other electrical equipment less than 10A on/off.
11. INTERVENTION MODE Button: Makes the entire light bar flash at 100% brightness.
12. PATROL MODE Button: Makes the entire light bar flash at 50% brightness.
13. TACTICAL MODE Button: Makes the entire light bar flash at 30% brightness.
14. WAIL Button: Press the button and the WAIL sound will be heard.
15. YELP Button: Press the button and the Yelp sound will be heard.
16. PHSR Button: Press the button and the Phsr sound (similar to priority) will come out.
17. HORN Button: Press the button and the horn sound will be heard.
18. MECH Button: Press the button and the mech sound will come out.
19. VOL Button: Long press the button, the siren sounds will reduce.
20. VOL+ Button: Long press the button, the siren sounds will increase

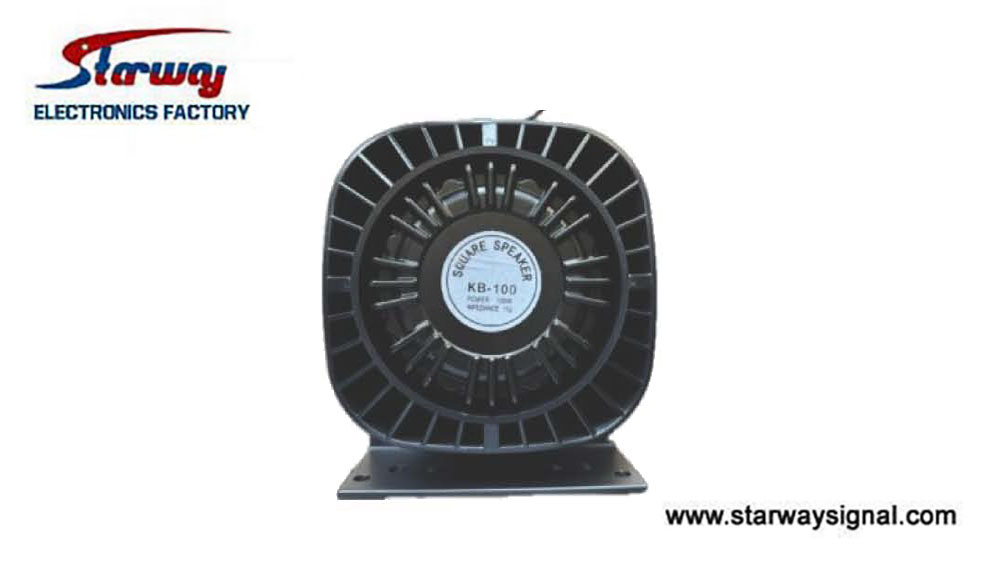

Compact and ultra-slim YS100-16 speaker
100W capacity, 100DB acoustic power
Resistant to water, dust and humidity
12VDC power
Protection IP 67
Light bar dimensions: 48" L x 12" W x 1.8" H (Length 1219.2mm, Width 304.8mm, and Height 45.72mm)
