1. Summary

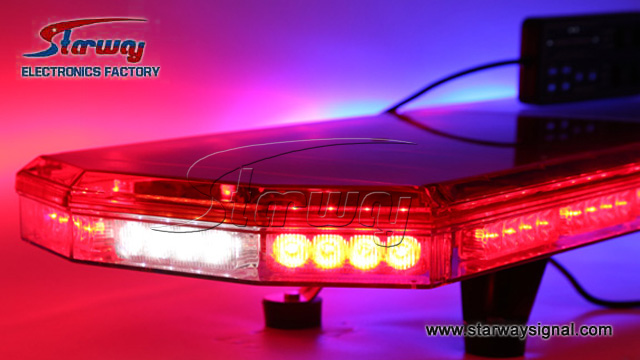

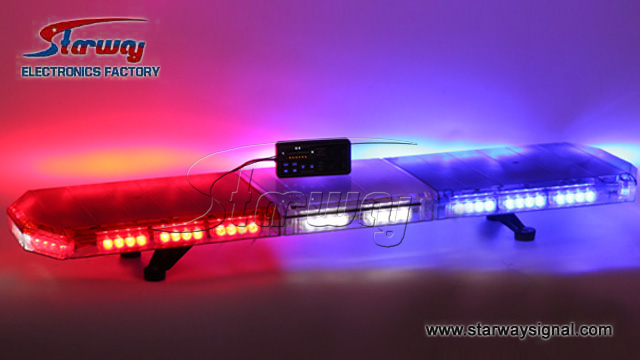

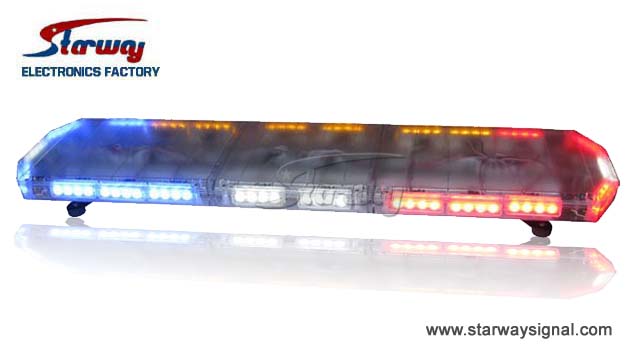

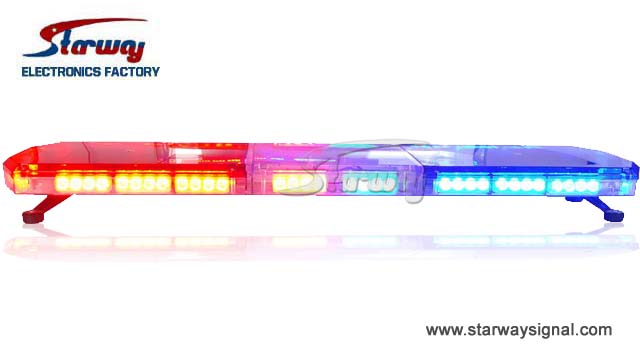

This Warning LED Sreamlined Lightbar made of a lot of high brightness LED lights. it has advantage with high brightness and low power waste and long use life etc.. The light bar has good looking shape and stronger against impulse capability, and it not easy to lose color or get aged. The light bar has 25 modes function offer to choose, and have power cutoff memory function. It has 6 direction lights on back of it, tree modes choose for direct the way. It can be installed on all kinds of special vehicles.

2.25 Flash patterns

◆Steady burn

◆Single flash Alt
◆Clock flash sides to middle
◆Double clock flash sides to middle
◆Triple flash half left-right
◆Accelerated flash half left-right
◆Half left-right quad, all flash
◆ Half left-right single ,all hex flash
◆Quad flash Alt
◆Clock triple flash left-right
◆Clock triple flash right-left
◆All triple flash
◆All quint flash
◆All slow flash
◆All speedup flash
◆Single flash half left-right
◆Pro-circle double flash
◆Con-circle double flash
◆Left clockwise right anticlockwise quad flash
◆Left anticlockwise right clockwise quad flash
◆Left steady burn right single flash
◆Left single flash right steady burn
◆Double slow 15 single flash ,accelerated quad flash
◆Double slow 6 single flash, accelerated 15 flash
◆Modulation

 2.Packing Information

4. Installation of the warning light bar

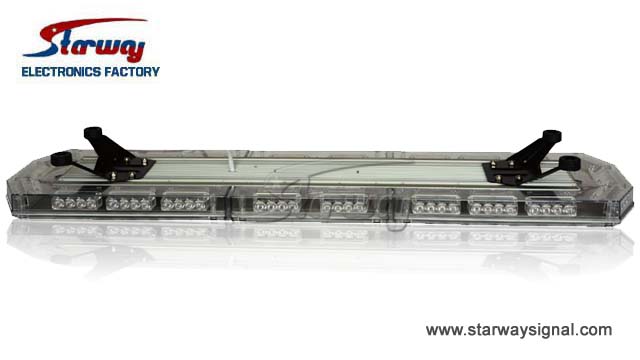

a)Put light bar on the back of the vehicle, base on the vehicle's size, adjusting the frame to fit it, And Then let the catches button the rainwater line on both side of the bodywork and screwing the nut by wrench. (Re. Figure 1 below)

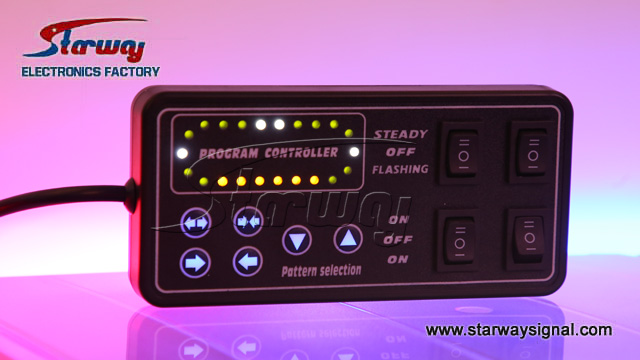

b)After installed, firstly, the two main electrical wires should be connected with auto's storage battery (red to +, black to -), secondly firm plug the controller to the light bar (Re. Figure 2 below).
c)After checking, then turn on the switch of controller, and choose the flash mode, the light will begin to work.

                        INSTALLATION OF THE LIGHT BAR

Note:

If the Warning LED light Bar did not work, please check the main fuse on the controller.
