LTF-A800DF/LED Light bar
Dimensions：1220x310x1510mm
- Specification
- Dimensions
- Video
- Download Instruction Manual
- Request Quote

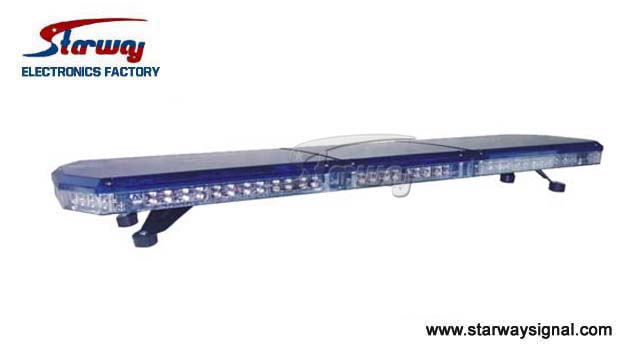

1. Summary
This Starway warning LED Lightbar is made of a lot of import LED lights. it has advantage with high
brightness and low power waste. The light bar has good looking shape and
stronger against impulse capability, and it not easy to lose color or get aged.
with 6 direction lights on back of it, tree flash mode offer to choose. It can
be installed on all kinds of special vehicles.
2. The main capability parameter
● The rated work voltage: DC 12V.
● The length of the light: 1.16m
2. The main capability parameter
● The rated work voltage: DC 12V.
● The length of the light: 1.16m
● The max. lightened bound: > 800LX.
● The environment temperature: -40 ℃~
+50 ℃.
● Waste currant: <10A
● Life Span:100,000 12/24V G-2 LEDs
● Dome: Imported high-strength PC
material with excellent lustrous and high penetrating-for ability.
● Base: Aluminum alloy material with
high strength.

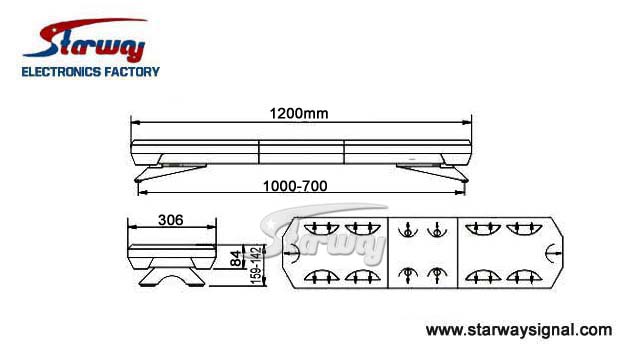

● Size : 1220x310x1510mm
● Net Weight: 12 KGs
3. Installation of the warning
light bar
● Put light bar on the back of the
vehicle, base on the vehicle's size, adjusting the frame to fit it, And Then
making the catch button the rainwater line on both side of the bodywork and
screwing the nut by wrench. (Re. illustration of light bar below)
● After installed, firstly the two
main electrical wires should be connected with auto's storage battery (red to +,
black to -), secondly firm plug the controller to the light bar. Then it can to
work..
● After checking, then turn on the switch of controller, and choose the flash mode, the light will beginning to work.

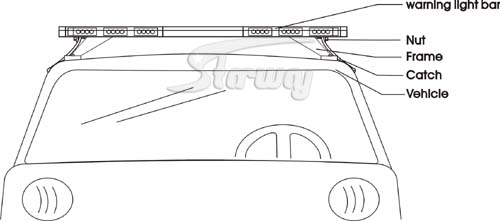

4. Instration of light bar

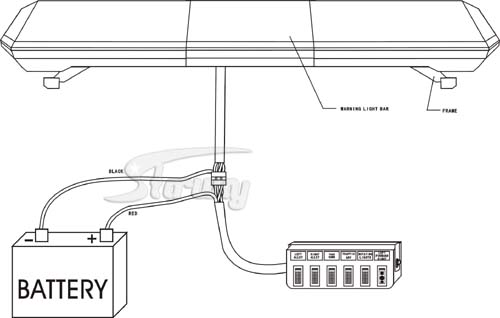

5.Connection of the Light bar And controller
1220x310x1510mm
