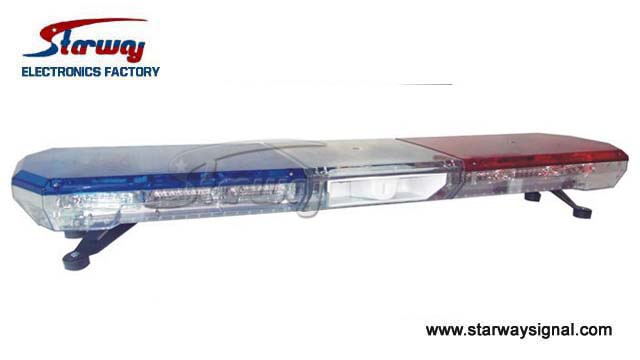

LED3510 LED Light bar

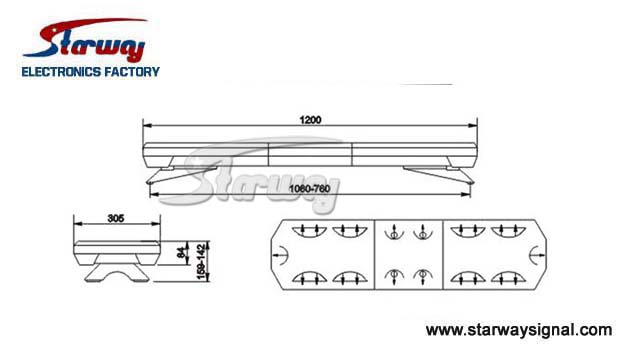

Dimensions：1200x305x84mm(without brackets )
- Specification
- Dimensions
- Video
- Download Instruction Manual
- Request Quote
1. Summary:
This Police LED Warning lightbar is made of a lot of high brightness LED lights. It has advantage with high brightness and low power waste. The Emergency light bar has good-looking shape and stronger against impulse capability, and it not easy to lose color or get aged. With 6 direction lights on back of it, tree flash mode offer to choose for direct the way. This Police LED Warning lightbar can be installed on all kinds of special vehicles.
2. Features
● 100,000 hour life span
● Adopting high luminosity LEDs as front light source Backlight outfits six programme light .
● Weater-proof Housing
● Perfect for police fire EMS and construction vehicle lighting and airforce .
3. Specifiation:
|
Model |
LED3510 Warning LED Lightbar |
|
Work voltage |
DC12V/ DC24V |
|
Length |
1160mm |
|
The max. lightenedbound |
> 800LX |
|
Environment |
-40 ℃~ +50 ℃ |
|
Currant |
≤9A |
|
Leftalley light |
10W halogen |
|
Rightalley light: |
10W halogen |
|
Directionlights |
10W*6 halogen |
|
Mainflashlights |
2.88W*4 red LED, 4.8W*4 blueLED, 4 time alternate 4 time synchronal flash mode. |
|
Total lights power |
108W |
|
Speakerpower |
100W |
|
DOME |
Imported high-strength PC material withexcellent lustrous and high penetrating-for ability. |
|
BASE |
Aluminum alloy material with highstrength. |
|
BULB |
LED light With the functions of highbrightness fine stability ,low energy consumption. |
4. Packing Information
|
Packing Size |
1220*310*140mm |
|
Qty/CTN |
1PCS |
5.Installation of the warning light bar

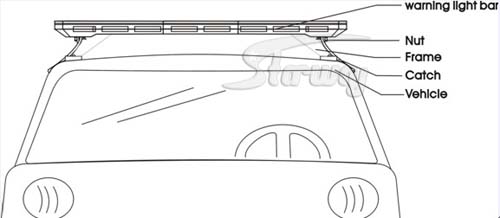

● According to the different size, adjusting the frame on the back bodywork. Then making the catch button the rainwater line on both side of the bodywork and screwing the nut by wrench. (Re. Fig. 1)

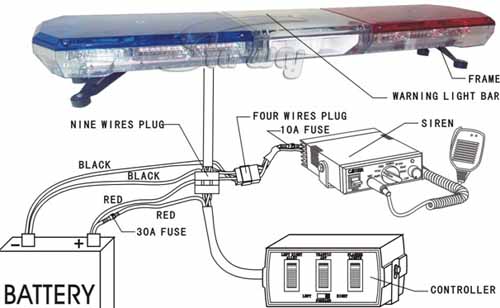

● After installed, the four main electrical wires connect to the battery (two red to +, two black to -).
● Inset the nine wires plug to the controller, and the another four wires plug inset to the siren. Then after checking, operate the controller and siren to work the light bar. (Re. Fig. 2)
