LTF-A817AB-120L LED Linear Lightbar
Dimensions：Length: 48" x Width: 11.8" x Height 1.8"
- Specification
- Dimensions
- Video
- Download Instruction Manual
- Request Quote
1. Summary

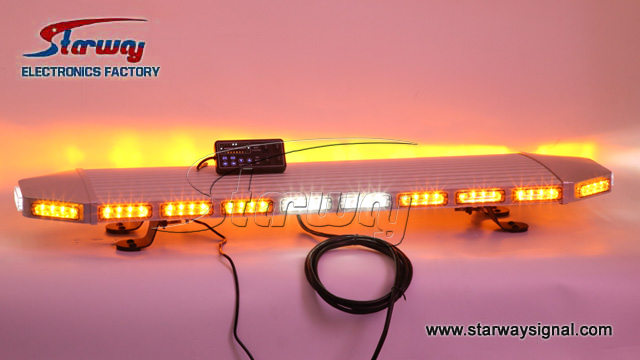

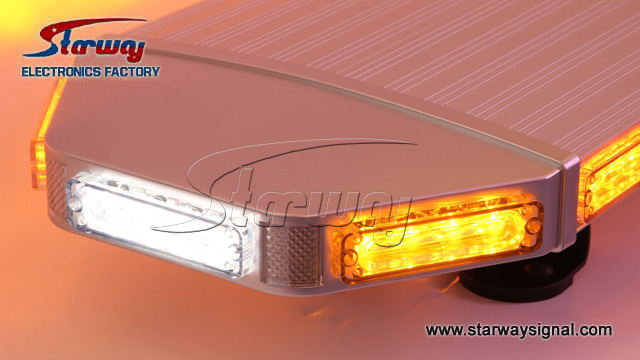

The Starway LED Linear Lightbar is a 360-degree lighting system with extremely low amperage draw. Using It's signature low profile design, it is engineered to provide superior aerodynamics and greater fuel savings than other light bars. Each light bar contains 22 GEN III LINEAR modules. In total, there are 132 1 Watt LEDs. Trust us when we say this light is bright. So bright, that it is noticeable in direct sunlight.

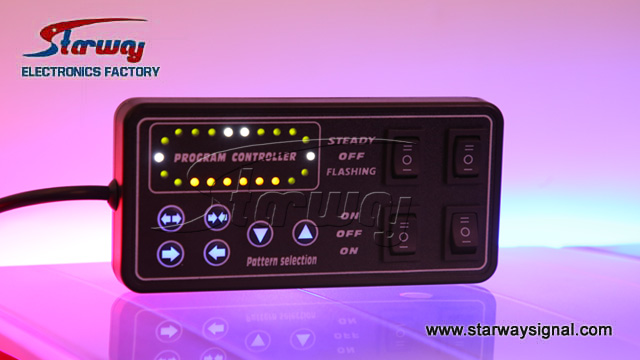

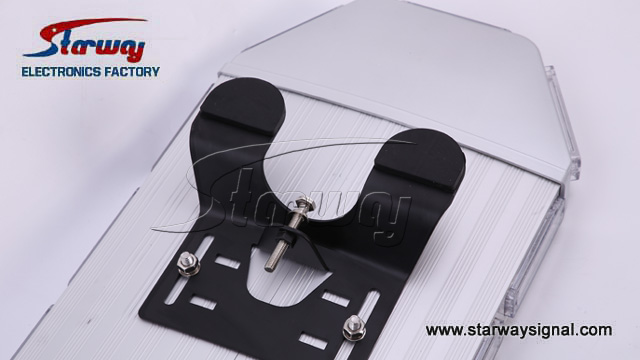

The Starway LED Linear Lightbar comes standard with a 15-foot cord and 9 Button Control Box. What's special about the control box is that it contains a flash pattern indicator, which shows the user the flash patterns the lightbar is doing from inside the vehicle. The light bar is very easy to install and comes with mounting hardware for roof mount. The Light bar can also be hardwired to your existing switch box. Fully encapsulated and fully waterproof, all LED modules and flasher boards are epoxy coated, keeping it safe from all weather conditions.
Included are 14 primary warning modules, 4 Traffic Advisor modules, Take Down Lights and Alley Lights. White modules can be left on steady burn, flashing and on the OFF position.
Emerency Light Bars are designed for those who need high output lights, with the simple function. They are a great solution for those who need high intensity light output with out hurting their pocket books.
2.Features
1) Sleek design with clear lens for stealth look;
2) Includes wire harness for easy installation;
3) 30 Selectable flash patterns;
4) Full function 9 Button switchbox included;

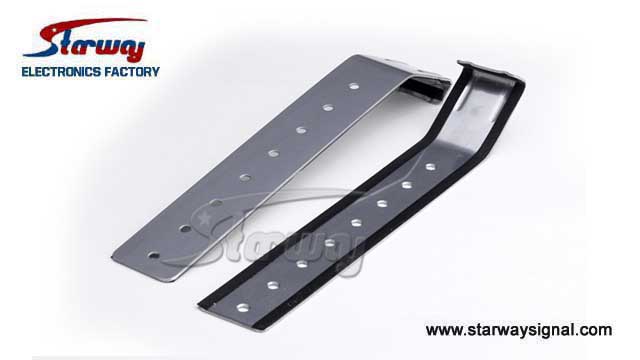

5) Gutter Brackets included for mounting;
6) Extreme performance in a package under 2" high;
7) Integrated Traffic Direction feature .
3. Specifications
1) Voltage: 12VDC
2) SAE Rated
3) Generation III LINEAR LED technology
4) Self contained internal flasher
5) 15' cable from light bar to switchbox
6) Fully encapsulated, fully weatherproof.
7) 6 LEDs in every module. (132 LEDs total).
4.Dimensons
The Starway LED Linear Lightbar is a 360-degree lighting system with extremely low amperage draw. Using It's signature low profile design, it is engineered to provide superior aerodynamics and greater fuel savings than other light bars. Each light bar contains 22 GEN III LINEAR modules. In total, there are 132 1 Watt LEDs. Trust us when we say this light is bright. So bright, that it is noticeable in direct sunlight.
The Starway LED Linear Lightbar comes standard with a 15-foot cord and 9 Button Control Box. What's special about the control box is that it contains a flash pattern indicator, which shows the user the flash patterns the lightbar is doing from inside the vehicle. The light bar is very easy to install and comes with mounting hardware for roof mount. The Light bar can also be hardwired to your existing switch box. Fully encapsulated and fully waterproof, all LED modules and flasher boards are epoxy coated, keeping it safe from all weather conditions.
Included are 14 primary warning modules, 4 Traffic Advisor modules, Take Down Lights and Alley Lights. White modules can be left on steady burn, flashing and on the OFF position.
Emerency Light Bars are designed for those who need high output lights, with the simple function. They are a great solution for those who need high intensity light output with out hurting their pocket books.
2.Features
1) Sleek design with clear lens for stealth look;
2) Includes wire harness for easy installation;
3) 30 Selectable flash patterns;
4) Full function 9 Button switchbox included;
5) Gutter Brackets included for mounting;
6) Extreme performance in a package under 2" high;
7) Integrated Traffic Direction feature .
3. Specifications
1) Voltage: 12VDC
2) SAE Rated
3) Generation III LINEAR LED technology
4) Self contained internal flasher
5) 15' cable from light bar to switchbox
6) Fully encapsulated, fully weatherproof.
7) 6 LEDs in every module. (132 LEDs total).
4.Dimensons
Length: 48" x Width: 11.8" x Height 1.8"
